Roto-GrindRoto-Grind Heavy Duty Precision Rotary Grinding Tables are engineered for use with more challenging substrates and higher precision. Great for inside diameter, outside diameter and surface grinding, as well as lapping, inspection and assembly applications. The Heavy Duty Rotary Grinding Tables are available in sizes ranging from 7" to 15" in diameter. The HD's also include air bearing models from 15" to 24" in diameter while the Heavy Duty 1012 model has a 12" table with a full 1HP motor. Heavy duty rotary grinding tables can be used with your existing surface and jig grinders, machining centers, mills, and EDM Machines.
ROTO-GRIND HEAVY DUTY | 707 : 710 : 715
Precision Rotary Grinding Tables The Roto-Grind 700, 710, and 715-series of Precision Rotary Grinding Tables feature heavy cast bases for superior rigidity and available with a wide range of table diameters from 7" to 24" tables. Use these tables for grinding applications involving challenging substrates, including, Quartz, Silicon, Ceramics, and Silicon Carbide. Choose from an assortment of options for greater versatility. |

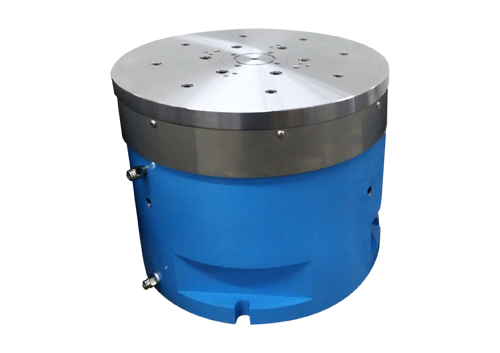

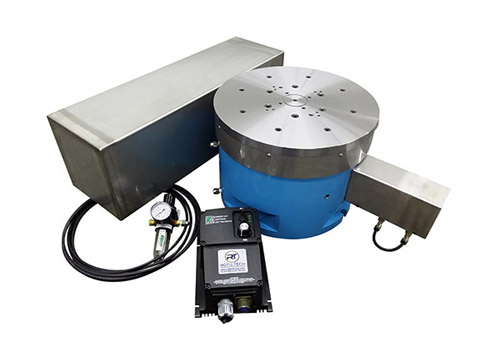

ROTO-GRIND HEAVY DUTY | 1012HD
12" Rotary Grinding Tables The Roto-Grind 1012HD Heavy Duty Rotary Grinding Table features a large 12" spinning table top with a heavy steel bases for superior rigidity. Use these tables for grinding applications involving challenging substrates, including, Quartz, Silicon, Ceramics, and Silicon Carbide. Add available options for greater versatility. |

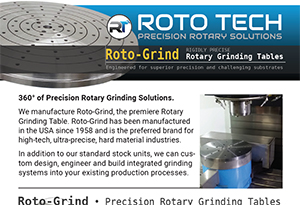

ROTO TECH Product Brochure
Download the Roto Tech Heavy Duty Rotary Grinding Tables brochure. Download the entire Roto Tech Rotary Grinding Tables Product brochure. Add these available options for greater versatility to your rotary grinding table.
|
|||||||||||||
|
ROTO-GRIND HEAVY DUTY | 707 : 710 : 715
Precision Rotary Grinding Tables The Roto-Grind 700, 710, and 715-series of Precision Rotary Grinding Tables feature heavy cast bases for superior rigidity and available with a wide range of table diameters from 7" to 24" tables. Use these tables for grinding applications involving challenging substrates, including, Quartz, Silicon, Ceramics, and Silicon Carbide. Choose from an assortment of options for greater versatility. |
||||||||||
ROTO-GRIND HEAVY DUTY | 1012HD
12" Rotary Grinding Tables The Roto-Grind 1012HD Heavy Duty Rotary Grinding Table features a large 12" spinning table top with heavy cast bases for superior rigidity. Use these tables for grinding applications involving challenging substrates, including, Quartz, Silicon, Ceramics, and Silicon Carbide. Add available options for greater versatility. |
||||||||||
|
ROTO TECH Product Brochure
Download the Roto Tech Heavy Duty Rotary Grinding Tables brochure. Download the entire Roto Tech Rotary Grinding Tables Product brochure. Add these available options for greater versatility to your rotary grinding table.
|
MAGNETIC CHUCK
Saves time by eliminating the clamp-unclamp cycle and improves accessibility to components. |

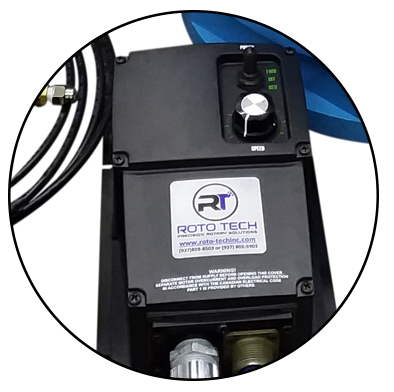

MOTOR CONTROLLER
Available in 0.5 and 0.75 horsepower. |

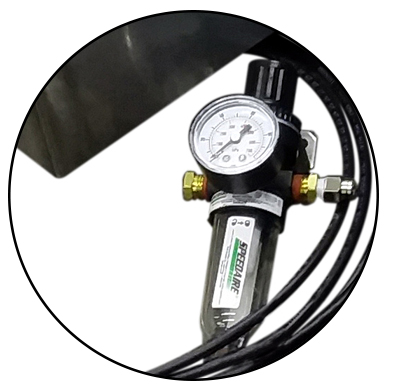

AIR BEARINGS
For low friction load-bearing interface. |
|
MAGNETIC CHUCK
Saves time by eliminating the clamp-unclamp cycle and improves accessibility to components. |
|
|
MOTOR CONTROLLER
Available in 0.5 and 0.75 horsepower. |
|
|
AIR BEARINGS
For low friction load-bearing interface. |
| MODEL | ROTARY TABLE | ROTARY TABLE | STANDARD | STANDARD | STANDARD ACCURACY | |
|---|---|---|---|---|---|---|
| DIAMETER | HEIGHT | BEARING/SEAL | RPM RANGE | CONCENTRICITY | TABLE TOP | |
| 707-7 | 7" (177.8 mm) | 5¼" (133.4 mm) | Roller/Felt | 0-40 | 0.0001" | 0.0001" |
| 710-10 | 10" (254.0 mm) | 5¼" (133.4 mm) | Roller/Felt | 0-35 | 0.0001" | 0.0001" |
| 710-12 | 12" (304.8 mm) | 5¼" (133.4 mm) | Roller/Felt | 0-35 | 0.0001" | 0.0001" |
| 710-15 | 15" (381.0 mm) | 5⅜" (135.5 mm) | Roller/Felt | 0-35 | 0.0001" | 0.0002" |
| HEAVY DUTY AIR BEARING | ||||||
| 715-15 | 15" (381.0 mm) | 6¾" (171.5 mm) | Air Bearing | 0-35 | 0.0001" | 0.0002" |
| 715-18 | 18" (457.0 mm) | 7" (177.8 mm) | Air Bearing | 0-35 | 0.0001" | 0.0002" |
| 715-20 | 20" (508.0 mm) | 7" (177.8 mm) | Air Bearing | 0-35 | 0.0001" | 0.0002" |
| 715-22 | 22" (558.0 mm) | 7¼" (184.2 mm) | Air Bearing | 0-35 | 0.0001" | 0.0002" |

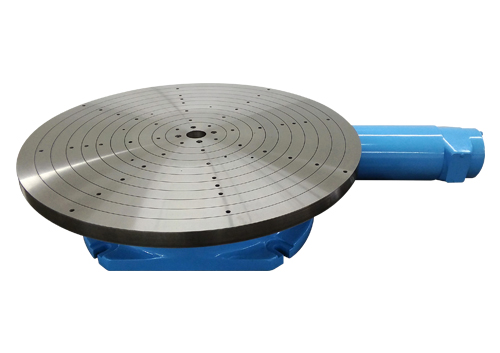

| 715-24 | 24" (609.0 mm) | 7½" (190.5 mm) | Air Bearing | 3-35 | 0.0001" | 0.0002" |
| HEAVY DUTY | ||||||
| 1012HD | 13.38" (340.0 mm) | 10" (254.0 mm) | Duplex/Seal | 10-175 | 0.0001" | 0.0001" |
