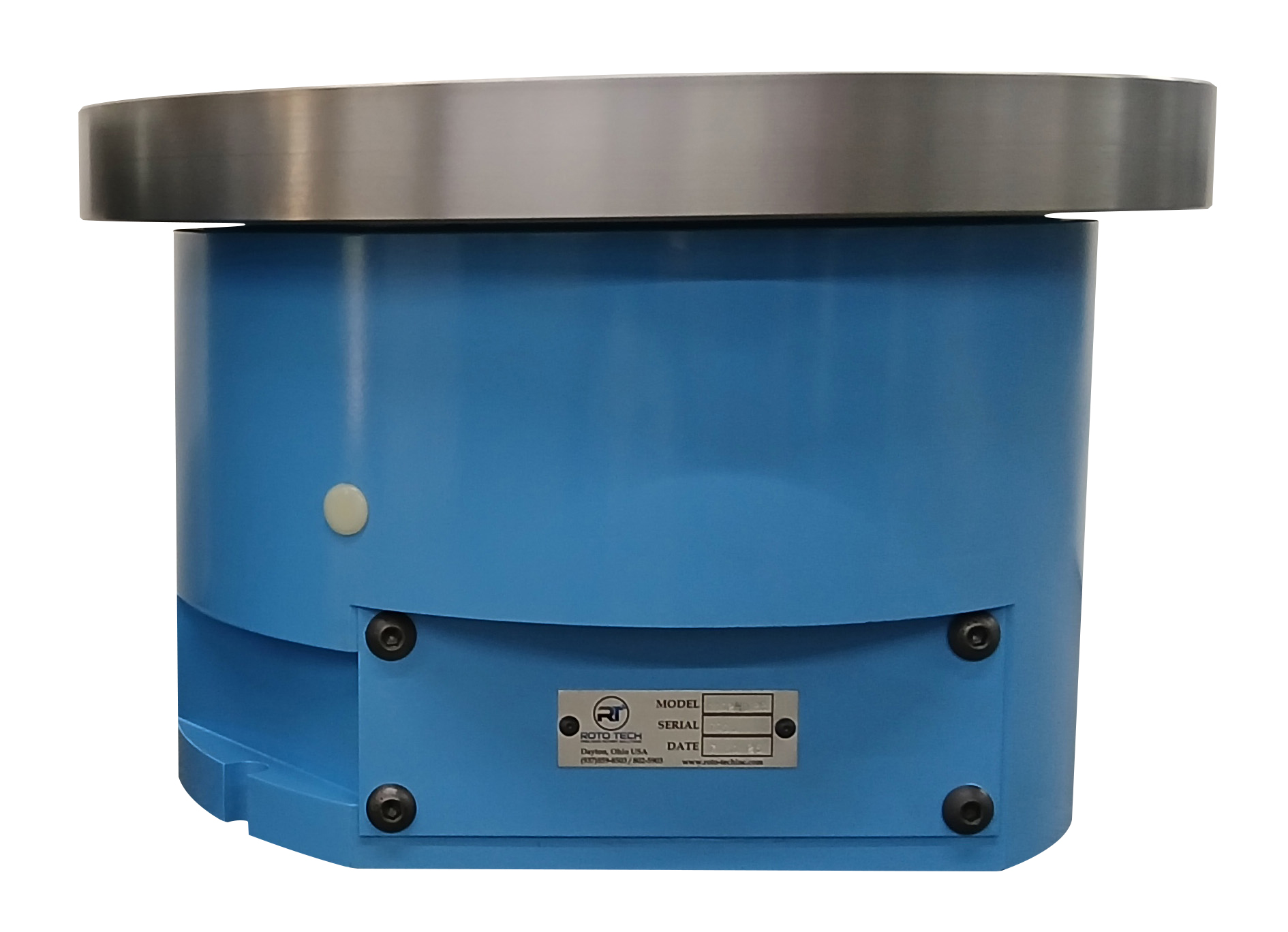

Roto RoundThe Roto Round rotary tables are rigid precision manual spin (free wheeling) with a mechanical or air bearing design used for the inspection circular components and buildup of shaft assemblies in a shop floor environment. The standard Roto Round can be mounted in the vertical or horizontal configuration and offers optional features such as air bearings, air purge, motorized rotation, manual/ electronic gaging, encoder display and work holding devices such as a magnetic chuck or rotary joint/ piping for a customer’s air vacuum part fixture.
Standard Roto Round rotary tables come in several different configurations standard, low boy, heavy-duty and high precision. Roto Rounds can be purchased with high accuracy tolerances depending on your requirements. Custom sizes and features can be designed by Roto Tech Inc.
Use your Manual Roto-Round Model to add precision to:
• Inspection operations
• Assembly buildup
• Final inspections

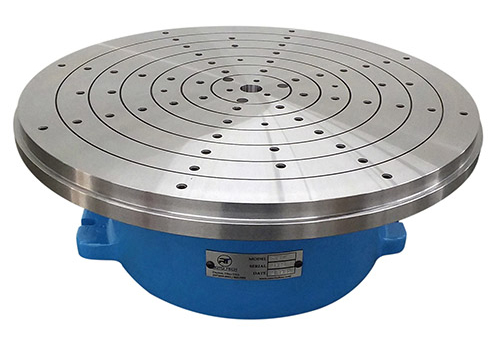

ROTO ROUND | 715-RR
Rotary Assembly & Inspection Tables We can customize your Standard Roto-Round with options such as a motorized unit, high accuracy unit, granite plate, indicators, etc. |

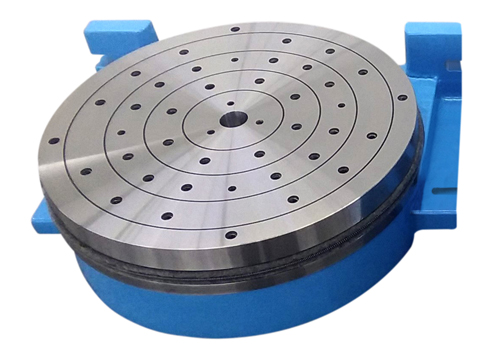

ROTO ROUND | LB410-RR
Rotary Assembly & Inspection Tables A low profile Roto Round manual Rotary Assembly & Inspection Table for applications requiring additional clearance. Standard models range from 10" to 15" in diameter. |
HEAVY-DUTY ROTO ROUND | 1012HD-RR-15
Rotary Assembly & Inspection Tables Heavy duty Roto Round motorized Rotary Assembly & Inspection Tables for applications requiring superior rigidity and accuracy. Available from 13.38" to 15.75" in diameter. |
|
ROTO ROUND | 715-RR
Rotary Assembly & Inspection Tables We can customize your Standard Roto-Round with options such as a motorized unit, high accuracy unit, granite plate, indicators, etc. Read more about our Rotary Assembly & Inspection Tables... |
|
ROTO ROUND | LB410-RR
Rotary Assembly & Inspection Tables A low profile Roto Round manual Rotary Assembly & Inspection Table for applications requiring additional clearance. Standard models range from 10" to 15" in diameter. Read more about our Rotary Assembly & Inspection Tables... |
|
HEAVY-DUTY ROTO ROUND | 1012HD-RR-15
Rotary Assembly & Inspection Tables Heavy duty Roto Round motorized Rotary Assembly & Inspection Tables for applications requiring superior rigidity and accuracy. Available from 13.38" to 15.75" in diameter. Read more about our Rotary Assembly & Inspection Tables... |
MAGNETIC CHUCK
Saves time by eliminating the clamp-unclamp cycle and improves accessibility to components. |
AIR BEARINGS
For low friction load-bearing interface. |

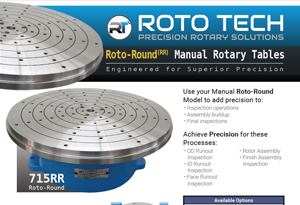

ROTO ROUND Product Brochure
Download the Roto Round Rotary Assembly & Inspection Tables brochure. Download the entire Roto Tech Rotary Grinding Tables Product brochure. Add these available options for greater milling versatility to your rotary grinding table.
|
|||||||||||||
|
MAGNETIC CHUCK
Saves time by eliminating the clamp-unclamp cycle and improves accessibility to components. |
|||||||||||
|
AIR BEARINGS
For low friction load-bearing interface. |
|||||||||||
|
ROTO ROUND Product Brochure
Download the Roto Round Rotary Assembly & Inspection Tables brochure. Download the entire Roto Tech Rotary Grinding Tables Product brochure. Add these available options for greater milling versatility to your rotary grinding table.
|
|||||||||||
| MODEL | TABLE | TABLE | HOUSING | HOUSING | BEARING | STANDARD ACCURACY | |
|---|---|---|---|---|---|---|---|
| DIAMETER | HEIGHT | LENGTH | WIDTH | TYPE | CONCENTRICITY | TABLE TOP | |
| 710-RR | 10" (254.0 mm) | 5¾" (146.0 mm) | 13½" (343.0 mm) | 11" (279.4 mm) | Ball/Opt. Air | 0.0001" | 0.0001" |
| 712-RR | 12" (304.8 mm) | 5.88" (149.4 mm) | 13½" (343.0 mm) | 11" (279.4 mm) | Ball/Opt. Air | 0.0001" | 0.0001" |
| 715-RR | 15" (381.0 mm) | 6" (152.4 mm) | 13½" (343.0 mm) | 11" (279.4 mm) | Ball/Opt. Air | 0.0001" | 0.0002" |
| LB410-RR | 10" (254.0 mm) | 3.2" (81.3 mm) | 12" (304.8 mm) | 10.6" (269.3 mm) | Ball/Opt. Air | 0.0001" | 0.0001" |
| LB412-RR | 12" (304.8 mm) | 3.3" (84.58 mm) | 12" (304.8 mm) | 10.6" (269.3 mm) | Ball/Opt. Air | 0.0001" | 0.0001" |
| LB415-RR | 15" (381.0 mm) | 3.45" (87.63 mm) | 12" (304.8 mm) | 10.6" (269.3 mm) | Ball/Opt. Air | 0.0001" | 0.0002" |
| 1012HD-RR | 13.38" (337.9 mm) | 10" (254.0 mm) | 13" (330.2 mm) | 13" (330.2 mm) | Duplex Ball | 0.0001" | 0.0001" |
| 1012HD-RR-15 | 15.75" (400.1 mm) | 10" (254.0 mm) | 13" (330.2 mm) | 13" (330.2 mm) | Duplex Ball | 0.0001" | 0.0001" |
| 15-18-RR | 17.88" (454.2 mm) | 3.5" (88.9 mm) | 20" (508.0 mm) | 20" (508.0 mm) | Air | 0.00003" | 0.00001" |
| 15-30-RR | 29.88" (759.0 mm) | 4.5" (114.3 mm) | 20" (508 mm) | 20" (508 mm) | Air | 0.00003" | 0.00001" |
