ROTO-GRIND HEAVY DUTY

Rotary Grinding Tables


The Heavy Duty Roto-Grind Rotary Grinding Table can be used on those difficult applications where additional rigidity and power is required. Standard models from 7" to 24" diameter.


See more information on the Roto-Grind Heavy Duty Rotary Grinding Tables...

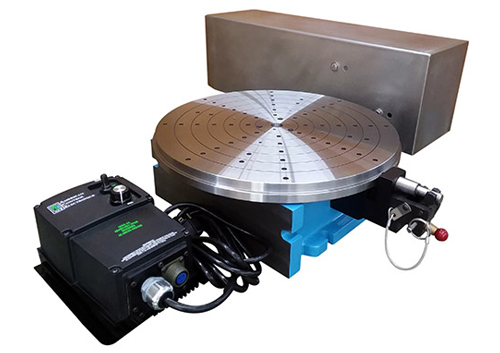

Shown in photo: Roto-Grind 710-15 Heavy Duty Rotary Grinding Table belt drive

Optional Features:

 Air Purge
 Sine Plate, 0-45 degrees
 Air Bearings (710 models)
 Rotary Joints
 Different Speed Ranges
 Magnetic Chuck


A series of heavy duty rotary grinding tables ready for ceramics, quartz and silicon parts producer

We configured this grinding table with a rotating base for achieving variable angled grinding.

ROTO-GRIND LOW BOY

Rotary Grinding Tables


A low profile height Roto-Grind Rotary Grinding Table for applications requiring additional clearance. Standard models from 7" to 15" diameter.


See more information on Roto-Grind Low Boy Rotary Grinding Tables...

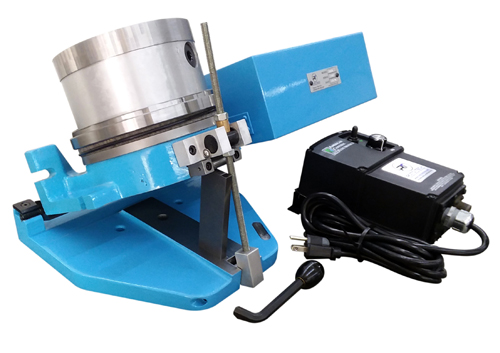

Shown in photo: Roto-Grind 410 Low Boy Rotary Grinding Table with Sine plate and magnetic chuck

Optional Features:

 Air Purge
 Sine Plate, 0-45 degrees
 Air Bearings
 Rotary Joints
 Different Speed Ranges
 Magnetic Chuck
 Heavy Duty Motor/Drive
 No Motor Feature
 24 Index, Manual Shot Pin
 Special Request Features


Roto-Grind Precision Rotary Grinding Tables

Roto Tech Rotary Grinding Tables and Services Brochure

A series of Heavy-Duty Rotary Grinding Tables specially configured for a China manufacturing plant for working silicon carbide, quartz, ceramics and other hard materials

Icon link for Roto Tech LinkedIn page

937-859-8503

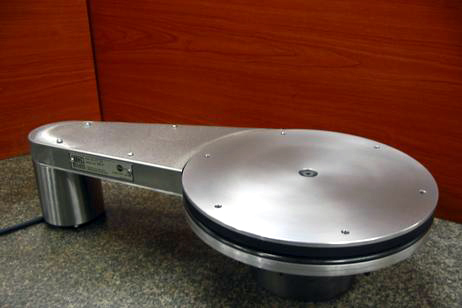

A specially constructed rotary grinding table for submersible operation

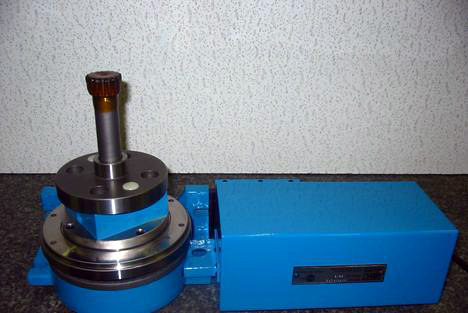

This rotary grinding table is configured specifically for grinding shank-type cutters

A Roto-Grind rotary grinding table model 710HD
A Roto-Grind rotary grinding table model 407LB

Special Application Rotary Grinding Tables

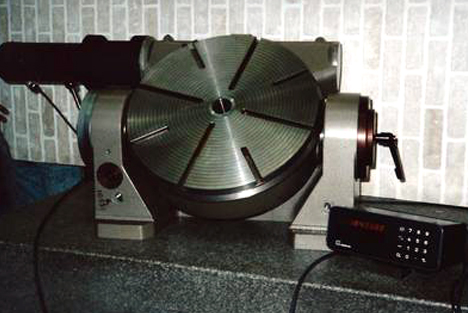

A Rotary Grinding Table designed to tilt to desired angle

We specially engineered this rotary grinding table to operate while completely submerged.

Rotary Grinding Tables and Roto Inspection systems can be designed with multiple axis, CNC systems, feedback options, and more.  We commonly provide grinding solutions to numerous industries in the United States and around the world:

                 Optics                                                       Semi Conductors

​                 Aerospace components                        Fiber Placement

​                 Braking Systems                                     Oil Drilling Pipe Connector Inspection

                 Precision components                           Laboratory


The Roto Tech logo

Copyright © Roto Tech. All rights reserved.

Roto-Grind is the industry leader for precision rotary grinding applications. Roto-Grind Rotary Grinding Tables are available in three models in a wide range of sizes and configurations to provide superior results for your specific applications.

A Rotary Grinding Table specially engineered for shank-type cutter grinding
A Roto-Grind rotary grinding table model 307V

Roto Tech

Phone (937)859-8503 or (937)802-5903 • Email: sales@roto-techinc.com


Roto Technology | Partners & Listings | M&M Precision Systems

Icon link to Roto Tech YouTube Channel

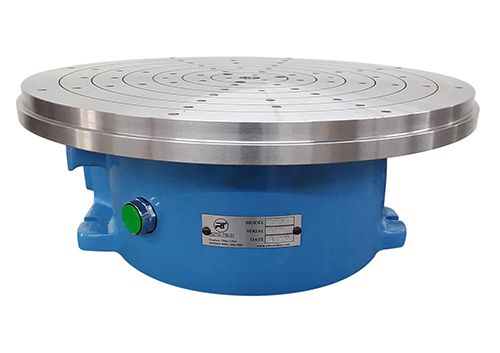

ROTO-GRIND STANDARD

Rotary Grinding Tables


Roto-Grind standard precision rotary grinding tables are great for inside diameter, outside diameter and surface grinding, lapping, inspection and assembly applications. We have proudly manufactured Roto-Grind Rotary Grinding Tables in the United States since 1958. Standard models from 7" to 15" diameter.


See more information on Standard Roto-Grind Rotary Grinding Tables...

Optional Features:

 Air Purge
 Sine Plate, 0-45 degrees
 Air Bearings
 Rotary Joints
 Different Speed Ranges
 Magnetic Chuck
 Heavy Duty Motor/Drive
 No Motor Feature
 24 Index, Manual Shot Pin
 Special Request Features


Roto Tech Corporate Video
See how Roto Tech Rotary Tables can enhance your precision milling applications. ​View the new Roto Tech corporate video promoting our rotary grinding table products and rotary grinding services. Also visit our YouTube channel.









Download the new 2021
Roto Tech Rotary Grinding
Tables & Services Brochure
.
