Roto-GrindRoto-Grind Low Boy Precision Rotary Grinding Tables are engineered for operation in low clearance environments and great for inside diameter, outside diameter and surface grinding, as well as lapping, inspection and assembly applications. We have proudly manufactured Roto-Grind Rotary Grinding Tables in the United States since 1958. Low Boy Rotary Grinding Table models are available in sizes ranging from 7" to 15" diameter and can be used with your existing surface and jig grinders, machining centers, mills, and EDM Machines.
ROTO-GRIND LOW BOY | LB407V : LB410V : LB412V
Precision Rotary Grinding Tables The Roto-Grind LB400 series of Precision Rotary Grinding Tables feature heavy cast bases for superior rigidity and are available with 7", 10", and 12" diameter tables. Add available options for greater versatility. |
ROTO-GRIND LOW BOY | LB415V
15" Rotary Grinding Tables The Roto-Grind LB415V Rotary Grinding Table features a large 15" spinning table top with heavy cast bases for superior rigidity. Add available options for greater versatility. |
ROTO TECH Product Brochure
Download the Roto Tech Low Boy Rotary Grinding Tables brochure. Download the entire Roto Tech Rotary Grinding Tables Product brochure. Add these available options for greater versatility to your rotary grinding table.
|
|||||||||||||
|
ROTO-GRIND LOW BOY | LB407V : LB410V : LB412V
Precision Rotary Grinding Tables The Roto-Grind LB400 series of Precision Rotary Grinding Tables feature heavy cast bases for superior rigidity and are available with 7", 10", and 12" diameter tables. Add available options for greater versatility. |
||||||||||
|
ROTO-GRIND LOW BOY | LB415V
15" Rotary Grinding Tables The Roto-Grind LB415V Rotary Grinding Table features a large 15" spinning table top with heavy cast bases for superior rigidity. Add available options for greater versatility. |
||||||||||
|
ROTO TECH Product Brochure
Download the Roto Tech Low Boy Rotary Grinding Tables brochure. Download the entire Roto Tech Rotary Grinding Tables Product brochure. Add these available options for greater versatility to your rotary grinding table.
|
MAGNETIC CHUCK
Saves time by eliminating the clamp-unclamp cycle and improves accessibility to components. |

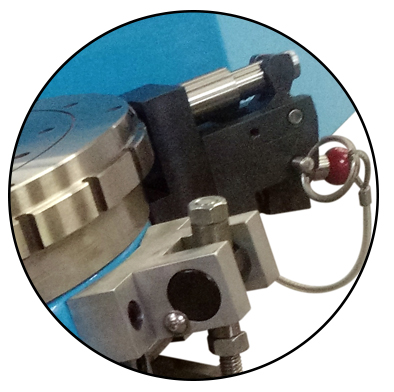

24 INDEX MANUAL SHOT PIN
Precision 24 locations (every 15°) of table positioning. |

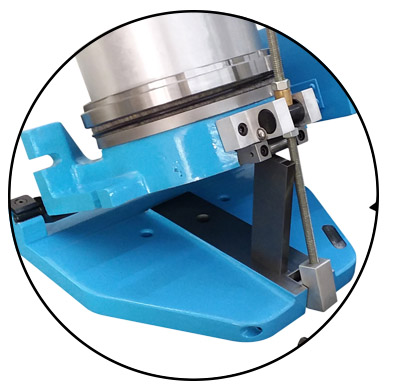

SINE PLATE
Precision angular positioning of up to 45° for profile (taper) grinding. |
|
MAGNETIC CHUCK
Saves time by eliminating the clamp-unclamp cycle and improves accessibility to components. |
|
|
24 INDEX MANUAL SHOT PIN
Precision 24 locations (every 15°) of table positioning. |
|
|
SINE PLATE
Precision angular positioning of up to 45° for profile (taper) grinding. |
| MODEL | ROTARY TABLE | ROTARY TABLE | HOUSING | STANDARD RPM | STANDARD ACCURACY | |
|---|---|---|---|---|---|---|
| DIAMETER | HEIGHT | LENGTH | RANGE | CONCENTRICITY | TABLE TOP | |
| LB407V | 7" (177.8 mm) | 3.2" (81.3 mm) | 19" (483.0 mm) | 20-90 | 0.0001" | 0.0001" |
| LB410V | 10" (254.0 mm) | 3.2" (81.3 mm) | 22" (559.0 mm) | 10-60 | 0.0001" | 0.0001" |
| LB412V | 12" (304.8 mm) | 3.2" (81.3 mm) | 22" (559.0 mm) | 10-60 | 0.0001" | 0.0001" |
| LB415V | 15" (381.0 mm) | 3.4" (86.4 mm) | 22" (559.0 mm) | 0-35 | 0.0001" | 0.0002" |
